Advanced Organic Waste Liquid Incinerator
The management of high-concentration organic wastewater is one of the most complex challenges facing modern industrial facilities. Streams laden with chlorinated substances, benzene, phenols, and complex solvents pose severe environmental risks and demand rigorous treatment protocols. Standard biological treatments or a basic replacement of traditional boiler systems simply cannot handle these aggressive, highly toxic effluents.
This is where the Ever-power organic waste liquid incinerator excels. Designed as a highly specialised thermal oxidation unit, our equipment is meticulously engineered for the absolute destruction and resource recovery of highly concentrated organic wastewater. By subjecting the effluent to extreme, controlled temperatures, we ensure the complete molecular breakdown of hazardous compounds, protecting your facility from EPA non-compliance and reputational damage.
Beyond simple disposal, our advanced waste liquid incinerator acts as a revenue-generating asset. It enables the active recovery of valuable by-products, such as commercial-grade hydrochloric acid (HCl) and hydrofluoric acid (HF), from the combustion exhaust. Transform your hazardous liabilities into sustainable, reusable resources with Ever-power’s industry-leading thermal technologies. Explore our complete range of thermal solutions on our home page.
Core Capabilities & Resource Recovery
The Ever-power waste liquid incinerator is not just a disposal unit; it is a comprehensive chemical processing and recovery plant. Our systems demonstrate outstanding performance in the treatment of high-concentration organic wastewater through the following core mechanisms.
1. Absolute Destruction of Toxins
Our robust combustion chambers operate at temperatures exceeding 1100°C with a residence time of over 2.0 seconds. This guarantees the thorough decomposition of harmful organic compounds, including resilient chlorinated substances, benzene rings, and complex phenols. We guarantee a Destruction and Removal Efficiency (DRE) of 99.99%, ensuring your emissions are completely free of toxic VOCs.

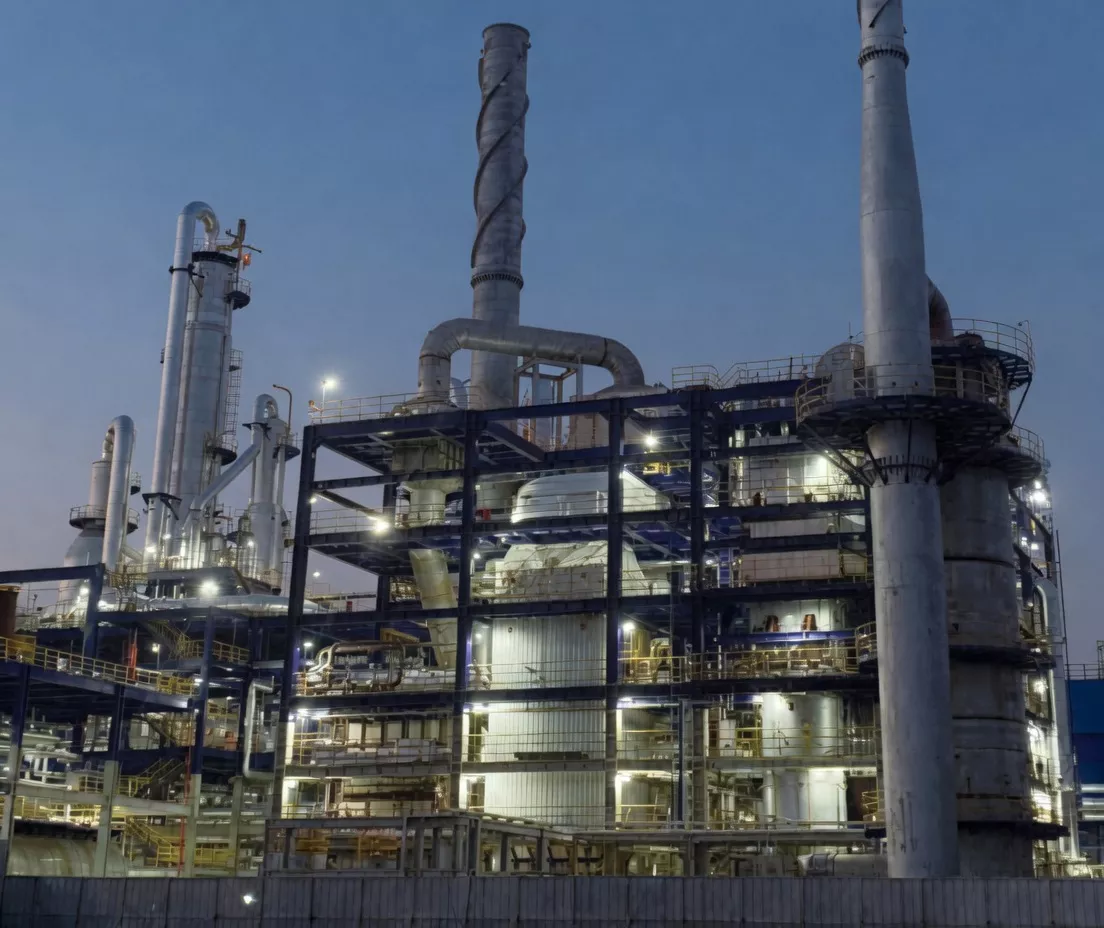

2. Hydrochloric & Hydrofluoric Acid Recovery
When burning halogenated waste (containing chlorine or fluorine), the exhaust generates highly corrosive acid gases. Instead of merely neutralising these gases and creating secondary wastewater, our waste liquid incinerator integrates advanced falling film absorbers. This enables the direct recovery of valuable substances such as hydrochloric acid (HCl) and hydrofluoric acid (HF) at commercial concentrations (up to 18-20%).
3. Advanced Atomisation Technology
High-concentration organic wastewater is often highly viscous and prone to clogging standard nozzles. We utilise proprietary dual-fluid (air or steam assisted) atomisation lances. This technology shears the waste liquid into a micro-fine mist (droplets < 50 microns), ensuring instantaneous vaporisation and complete oxidation, preventing any pooling or refractory degradation inside the furnace.
Industries We Serve Across Australia & Globally
Because of its exceptional versatility and robust anti-corrosion design, the Ever-power organic waste liquid incinerator is widely used in heavy industries where effluent characteristics fluctuate wildly. We provide tailored solutions for:
- ⬣

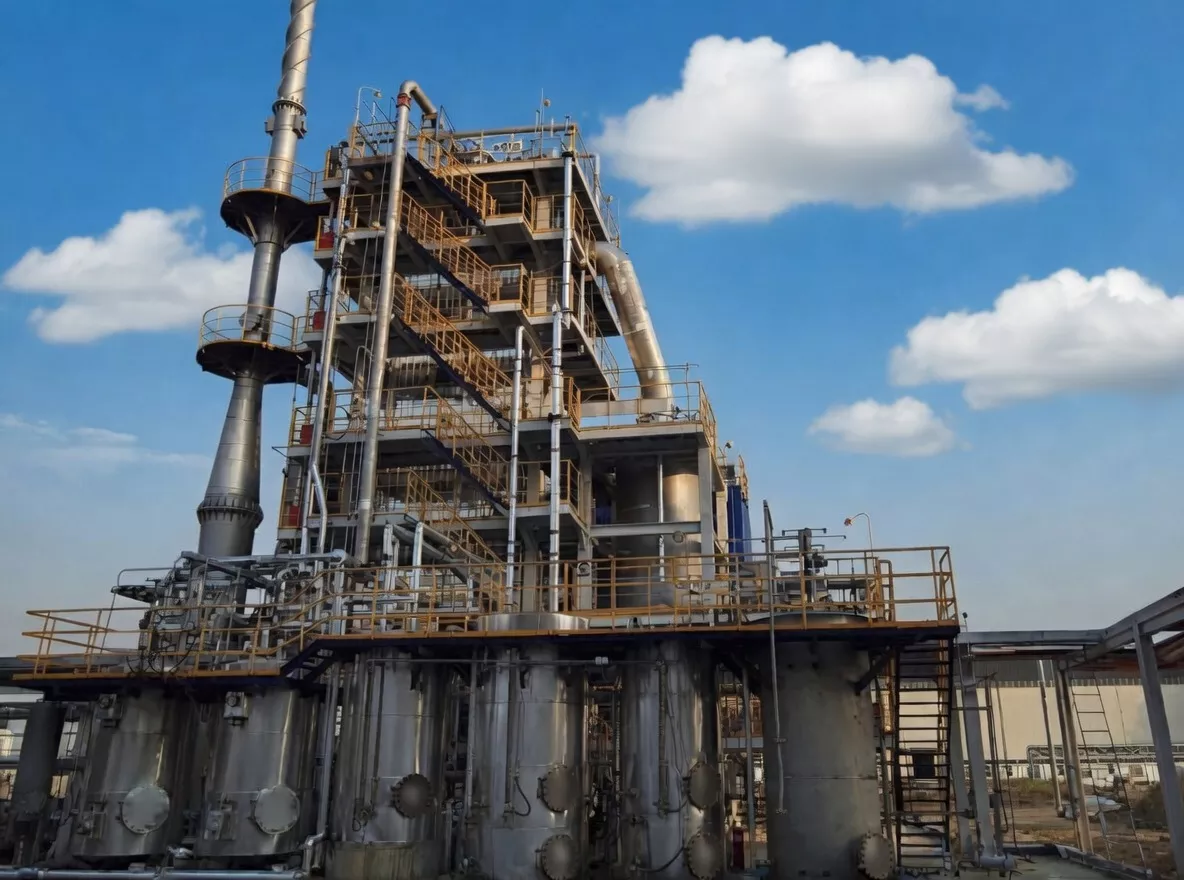

Chemical & Petrochemical Manufacturing: Processing by-products containing heavy hydrocarbons, benzene, and complex polymers. - ⬣
Pharmaceuticals: Safe destruction of active pharmaceutical ingredients (APIs), high-COD solvents, and phenol-rich wastewater. - ⬣
Textiles and Dyeing: Oxidation of heavily coloured, high-alkalinity, and complex organic dye effluents. - ⬣
Marine & Offshore: Compact systems for the disposal of bilge water, slop oils, and concentrated marine effluents. - ⬣
Electronics & Papermaking: Treatment of highly concentrated organic stripping solvents and black liquor.
Technical Specifications & Operating Parameters
As a premier engineering firm, Ever-power customises every waste liquid incinerator to match the exact thermodynamic profile and chemical makeup of your effluent. The following table outlines the standard capabilities of our industrial units, representing a massive technological leap over any basic replacement of standard liquid injection incinerators.
| System Parameter | Standard Specification Range | The Ever-power Engineering Standard |
|---|---|---|
| Processing Capacity | 100 kg/h to 20,000+ kg/h | Fully scalable configurations for both batch processing and continuous 24/7 heavy industrial operations. |
| Combustion Temperature | 850 °C to 1250 °C | Temperatures are precisely modulated via PLC to ensure the destruction of the most resilient aromatic hydrocarbons. |
| Gas Residence Time | > 2.0 Seconds | Strict volumetric design guarantees compliance with EPA mandates for halogenated hazardous waste disposal. |
| Acid Recovery Purity | Up to 18% – 22% Concentration | Utilising falling film graphite or silicon carbide absorbers for highly efficient, commercial-grade acid recovery. |
| Refractory Material | High-Alumina / Chrome Corundum | Multi-layered lining engineered specifically to withstand severe acid gas corrosion and alkali penetration. |
Why Choose Ever-power? (E-E-A-T Excellence)
Procuring a highly complex waste liquid incinerator is a significant capital investment. Substandard designs from inexperienced vendors lead to rapid refractory failure, blocked scrubbers, and severe EPA fines. Ever-power delivers unmatched Experience, Expertise, Authoritativeness, and Trustworthiness in the field of thermal oxidation.
✔ Deep Engineering Expertise
With decades of global operational experience, we engineer bespoke solutions rather than selling off-the-shelf boilers. Our team utilises advanced CFD (Computational Fluid Dynamics) to simulate every droplet’s trajectory. Discover our heritage on our company page.
✔ Uncompromising EPA Compliance
We understand the rigorous environmental laws of Australia. Our systems are guaranteed to comply with the National Pollutant Inventory (NPI) and adhere strictly to state EPA frameworks (e.g., EPA Victoria, NSW EPA) regarding dioxins, heavy metals, and VOC emissions.
✔ Resource Recovery Leaders
We are recognised authorities in transforming waste into wealth. Our patented falling film absorption technologies safely and efficiently extract high-purity acids from highly corrosive flue gases, vastly improving your project’s ROI.
✔ Turnkey Project Delivery
From initial laboratory testing of your specific effluent sample, through to 3D CAD integration, manufacturing, installation, and rigorous operator training, Ever-power is your reliable, single-source accountability partner.
Australian Project Case Studies

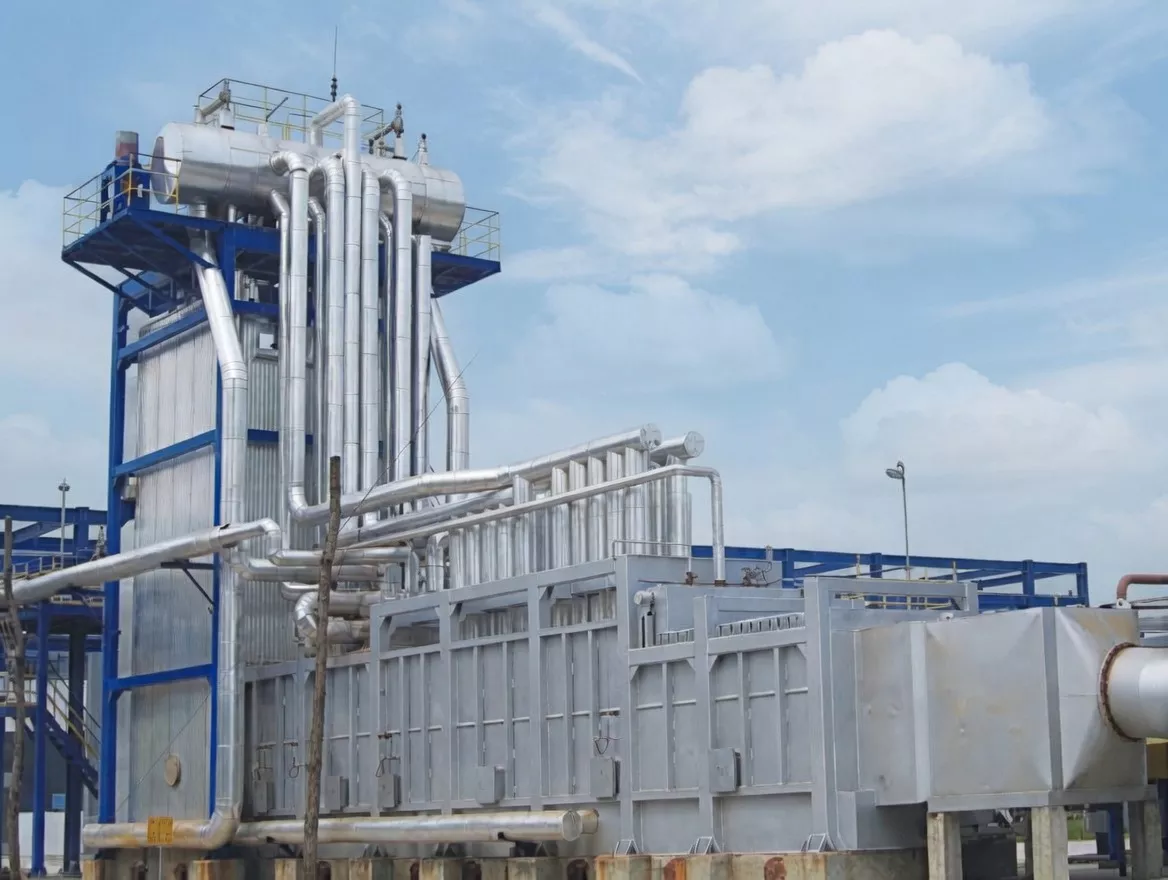

Pharmaceutical Manufacturing in NSW
The Challenge: A major pharmaceutical plant in Sydney was generating 1,200 kg/h of high-concentration organic wastewater rich in phenols and complex aromatic solvents. Off-site disposal costs were skyrocketing, and their existing biological treatment plant was failing due to toxicity shock.
The Solution: Ever-power installed a bespoke organic waste liquid incinerator. The system featured our high-shear atomisation nozzles to handle the viscous effluent and a secondary combustion zone operating at 1100°C.
The Result: Complete destruction of all phenols and APIs, with zero VOC emissions. The integrated heat recovery boiler now supplies 1.0 MPa steam back to the plant, effectively neutralising the operational cost of the incinerator.
Chemical Processing Plant in Victoria
The Challenge: A chemical manufacturer produced a highly problematic waste stream containing 15% chlorinated organic compounds. Standard disposal methods risked severe dioxin formation, and the acidic off-gas was destroying their previous scrubber systems.
The Solution: We deployed an advanced waste liquid incinerator designed specifically for halogenated waste. It operated at 1200°C with rapid quenching (<1 second) to prevent dioxin reformation. Crucially, we integrated a graphite falling-film absorber system into the exhaust train.
The Result: The facility now safely disposes of all chlorinated waste internally while continuously recovering 18% concentration commercial-grade hydrochloric acid (HCl), which is reused directly in their upstream manufacturing process.
Frequently Asked Questions (FAQ)
How does the system prevent the formation of highly toxic dioxins?
When treating chlorinated substances, dioxins can form if combustion is incomplete or if flue gases cool too slowly. Our waste liquid incinerator guarantees a combustion temperature above 1100°C with a residence time over 2 seconds, entirely destroying all dioxin precursors. Subsequently, a rapid quench system cools the exhaust gas from 1100°C down to under 200°C in less than one second, completely bypassing the temperature window (250°C – 400°C) where de novo dioxin synthesis occurs.
Can this equipment recover usable acids from the waste stream?
Yes. If your high-concentration organic wastewater contains halogens like chlorine or fluorine, the combustion process converts them into HCl and HF gases. By passing these exhaust gases through a specialised falling film absorption tower constructed from highly corrosion-resistant materials (like impregnated graphite), we can absorb the gas into water, recovering usable hydrochloric or hydrofluoric acid at concentrations between 15% and 22%.
Is this a suitable replacement of standard liquid injection incinerators?
Absolutely. Standard liquid injection units often fail prematurely due to poor atomisation of viscous liquids, leading to liquid pooling on the refractory and severe acid corrosion. The Ever-power organic waste liquid incinerator is a comprehensive technological upgrade. It features advanced dual-fluid nozzles that will not clog, superior anti-corrosion refractory linings, and fully integrated acid recovery systems that basic incinerators lack.
What happens if the water content in our organic waste fluctuates?
Industrial effluents are rarely homogenous. Our systems are equipped with an advanced PLC control system and rapid-response thermocouples. If the calorific value of the waste drops (due to higher water content), the system automatically and instantaneously modulates auxiliary support burners (natural gas or diesel) to ensure the combustion temperature never drops below the critical set-point, maintaining safe, continuous oxidation.
Will the emissions meet Australian EPA regulations?
Yes, without exception. The Ever-power waste liquid incinerator is designed precisely to exceed the most stringent global standards, including those set by Australian state EPAs. Our comprehensive downstream flue gas treatment trains—which can include wet scrubbers, dry sorbent injection, and baghouse filters—ensure absolute compliance regarding NOx, SOx, HCl, HF, heavy metals, and particulate matter.
Do you provide installation and maintenance support in Australia?
Yes. We provide complete end-to-end support. We collaborate closely with highly certified Australian mechanical and electrical contractors for seamless site integration. Furthermore, we offer extensive operator training, rapid spare parts logistics, and 24/7 remote PLC diagnostic support to ensure your facility maintains maximum operational uptime.
Ready to Optimise Your Liquid Waste Disposal?
Do not let aggressive organic effluents, failing refractory, and exorbitant hazardous waste disposal fees compromise your operational efficiency and bottom line. Partner with Ever-power for a highly reliable, fully EPA-compliant waste liquid incinerator capable of valuable resource recovery.
Contact us today to arrange a confidential review of your effluent data and secure a preliminary CFD simulation for your facility.
